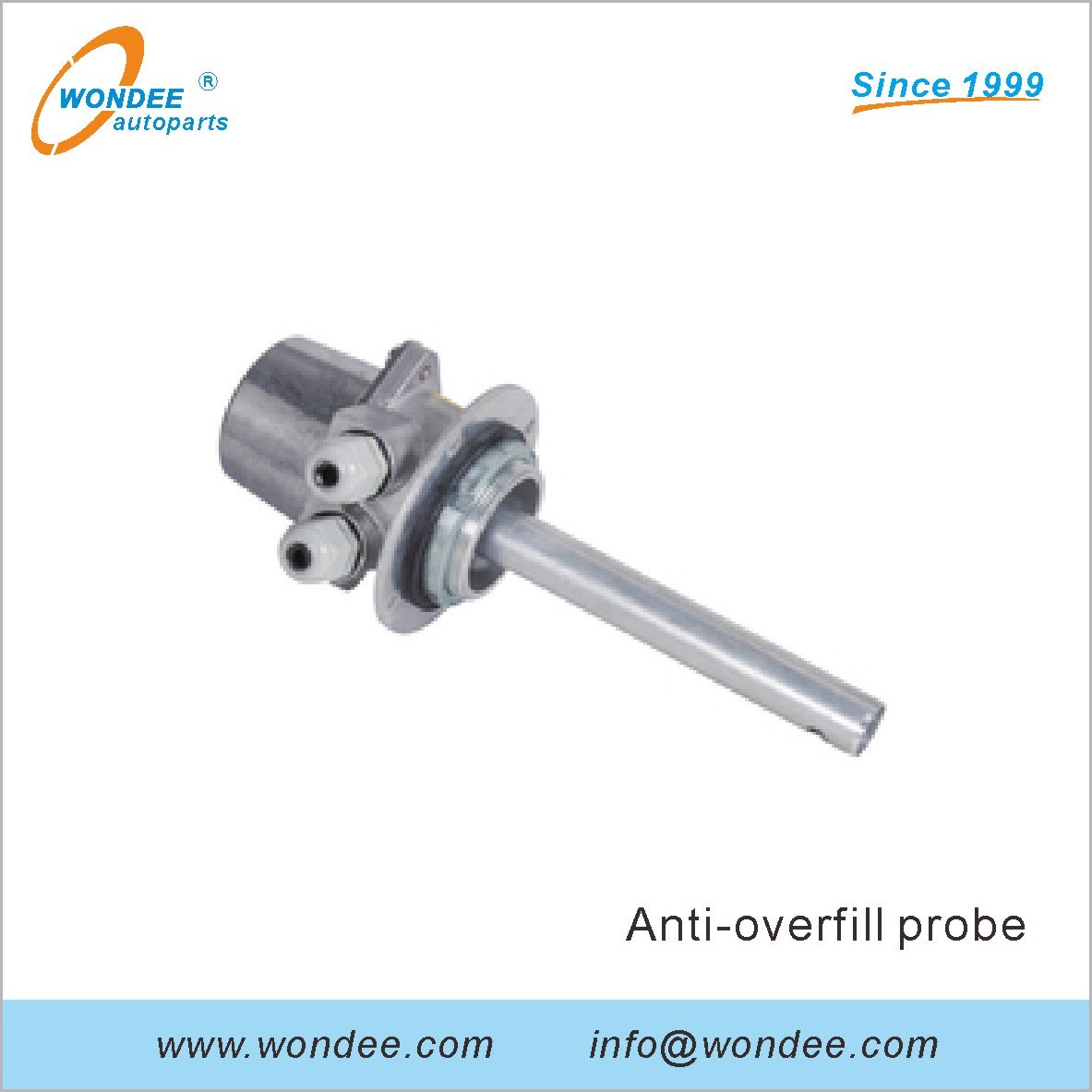

Overfill Prevention Probe for Tanker Truck Manhole Cove
- Product standards: GB 18564.1-2006
- Material available: Aluminum alloy, stainless steel
Dispatch within Customized Production Based on Your Requirements : Your order will be manufactured according to your specifications (size, material, usage, etc.) with professional engineering support..- Lead Time: 3–60 Days Depending on Quantity and Specification Warranty: Production and delivery time may vary based on your order volume and customization details. Contact us for an accurate schedule.
Description
Overview
The overfill prevention probe plays a vital role in keeping tanker loading safe and efficient. It uses optical detection technology to actively monitor the liquid level inside the tank. Once the fluid reaches the sensor’s detection point, the probe sends an immediate signal to stop the filling system. This prevents overfilling, reduces waste, and ensures compliance with safety regulations. As a result, operators can load fuel or chemicals with greater confidence and control.
Why Choose Our Overfill Prevention Probe?
This probe delivers fast, accurate detection under demanding conditions. It performs reliably even in harsh temperatures and integrates seamlessly with most control systems. Moreover, we offer models with durable aluminum alloy or corrosion-resistant stainless steel to suit different applications. By installing this probe, you actively reduce the risk of accidents and costly downtime. In addition, it helps your fleet stay compliant with hazardous material handling standards.
Available Models and Specifications
| Item No. | Mounting Type | Wire Options | Material |
|---|---|---|---|
| WD10-1110 | Threaded / Flanged | 2-wire / 5-wire | Aluminium Alloy |
| WD10P-1110 | Flanged | 5-wire | Stainless Steel |
Technical Specifications
| Parameter | Value |
|---|---|
| Working Principle | Optical Detection |
| Operating Voltage | 5–15V DC |
| Working Current | < 5mA |
| Operating Temperature | -40℃ to 60℃ |
| Response Time | < 1 Second |
| Explosion-Proof Rating | Exia II BT4 |
Application of the Overfill Prevention Probe
You can use this probe in fuel tankers, chemical transport trucks, and hazardous liquid vehicles. It offers a dependable solution for stopping filling operations at the right time. Therefore, it enhances workplace safety and helps prevent environmental damage. Furthermore, the probe performs consistently across a wide temperature range, making it suitable for both tropical and cold climate operations.
