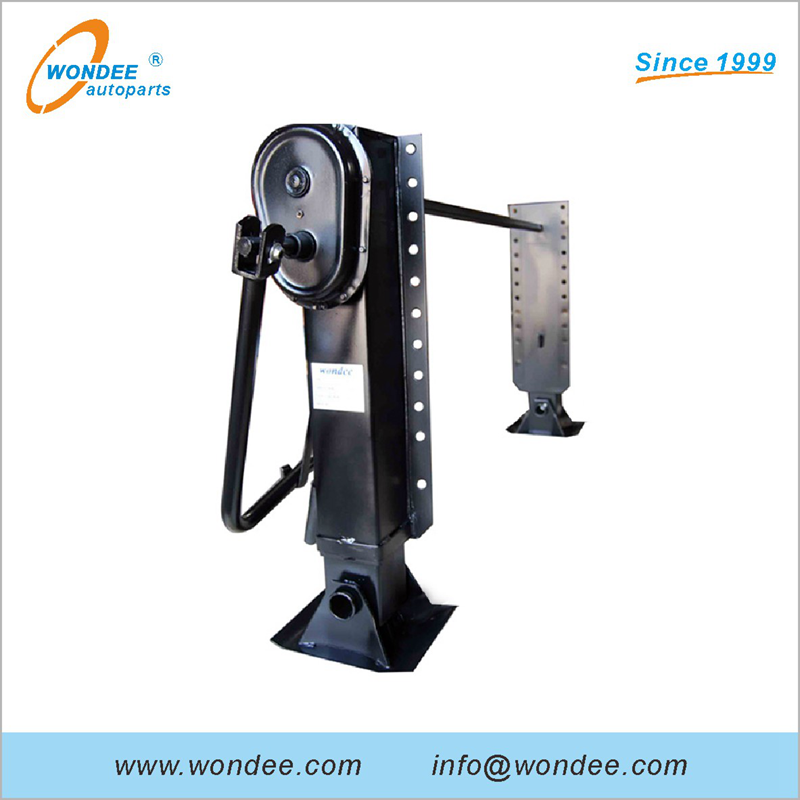

Landing Gear Components for Semi Trailers
- Implementing IATF 16949-2016
- Implementing ISO 9001-2015
- Quality testing passed by an independent lab
- Warranty: 16 months since shipping date
- 100% quality inspection before shipment
- Under 0.1% quality claim rate
- 85% self-produced parts
- Oversea sales volume (pairs): 50,000+
- 98% on-time delivery
- Sample charge: Free
Dispatch within Customized Production Based on Your Requirements : Your order will be manufactured according to your specifications (size, material, usage, etc.) with professional engineering support..- Lead Time: 3–60 Days Depending on Quantity and Specification Warranty: Production and delivery time may vary based on your order volume and customization details. Contact us for an accurate schedule.
Description
Overview
Landing gear components are essential for the stability and support of semi trailers when disconnected from the tractor. These parts ensure secure parking and safe cargo handling across a wide range of trailer types. From crank handles to bearing sets, every element contributes to the landing gear’s overall performance and durability.
Applications
Landing gear components are commonly installed at the front of trailers including flatbeds, tankers, lowbeds, skeletal, gooseneck, logging, and agricultural trailers. These components allow manual or mechanical support during loading, unloading, or parked status.
Key Features
| Quality Systems | IATF16949-2016 and ISO9001-2015 compliance |
| Material Quality | Q235 steel from top mills, carburized gears, and powder metallurgy bushings |
| Precision & Durability | Hydraulic shaping, cold-drawn screw rods, and long-life bearings |
| Crank Strength | Z-shaped cranks maintain shape and resist fatigue under stress |
| Grease & Lubrication | Built-in grease storage and -30℃~120℃ high-quality grease ensure smooth operation |
| Export Volume | 50,000+ sets to 25+ countries including South America, Africa, and Southeast Asia |
Comprehensive Product Range
Our landing gear components cover various interchangeable brands such as Fuwa, JOST, SAF, Holland, and BPW. We offer both gear-inside and gear-outside leg types, available in different lifting speeds, capacities (24~32 tons), foot shapes (T, R, S, A), and gearbox positions.
Popular Part Numbers
- Fuwa: FW280001A, FW280002R, FW280002T
- JOST: CB203110000, CI104320000, CA101420000
- SAF: CMS3, 4701 Series
- BPW: LL-S-750-HD, 02.3710.50.01
Optional Parts & Packaging

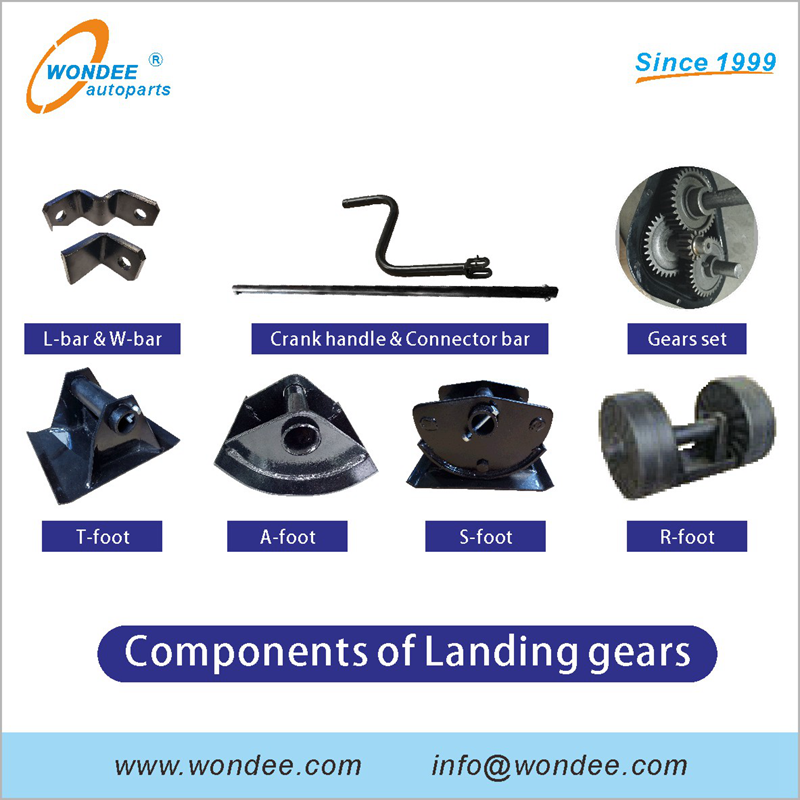

All core components including gear tubes, feet, cranks, bushings, screw rods, and grease storage are available. Standard packaging includes 200–216 pairs per 20 ft container with mixed loading available.
Certifications & Production

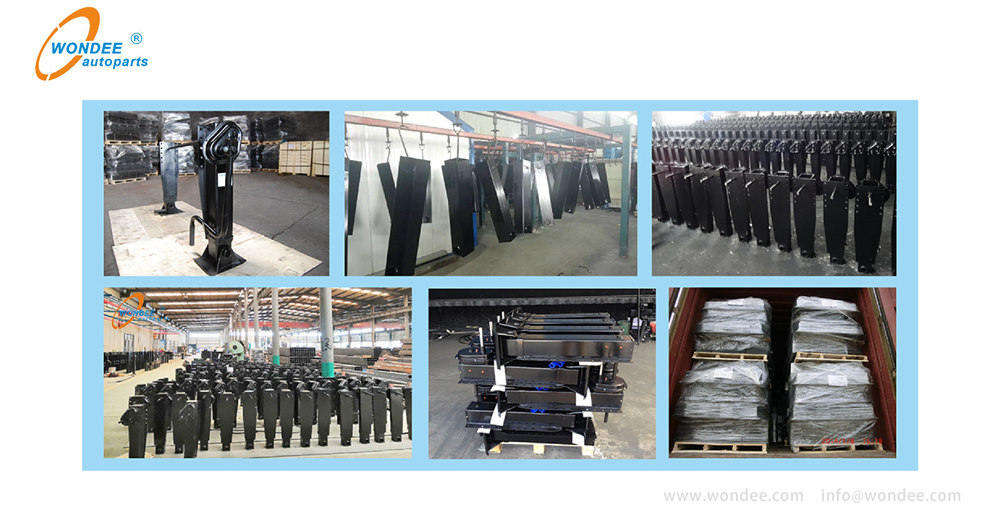

We hold multiple export certificates such as COC, PVOC, SONCAP, and FORM E. Our production site spans 15,000+ square meters, producing 80,000+ sets annually with 65+ staff including 7 engineers.
Parameter Table

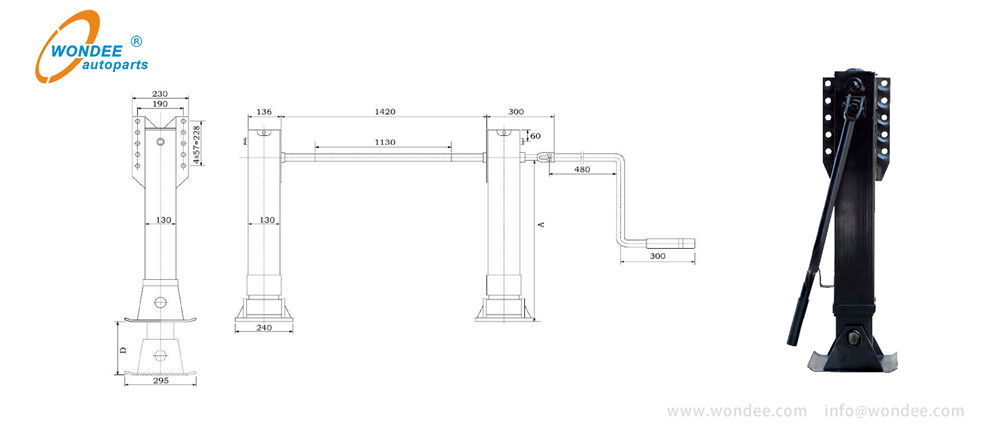

One-side operation, gear inside, with T-foot
| Item No. | Capacity (kg) | Static Load (kg) | Lifting Speed (High / Low mm/r) | Lift Travel (mm) | Mounting Height (mm) | Weight (kg) | Foot Type |
|---|---|---|---|---|---|---|---|
| LGN24-A0101T | 25000 | 60000 | 5.4 / 0.71 | 430 | 830 | 90 | T |
| LGN28-A0102T | 28000 | 80000 | 5.4 / 0.71 | 480 | 880 | 96 | T |

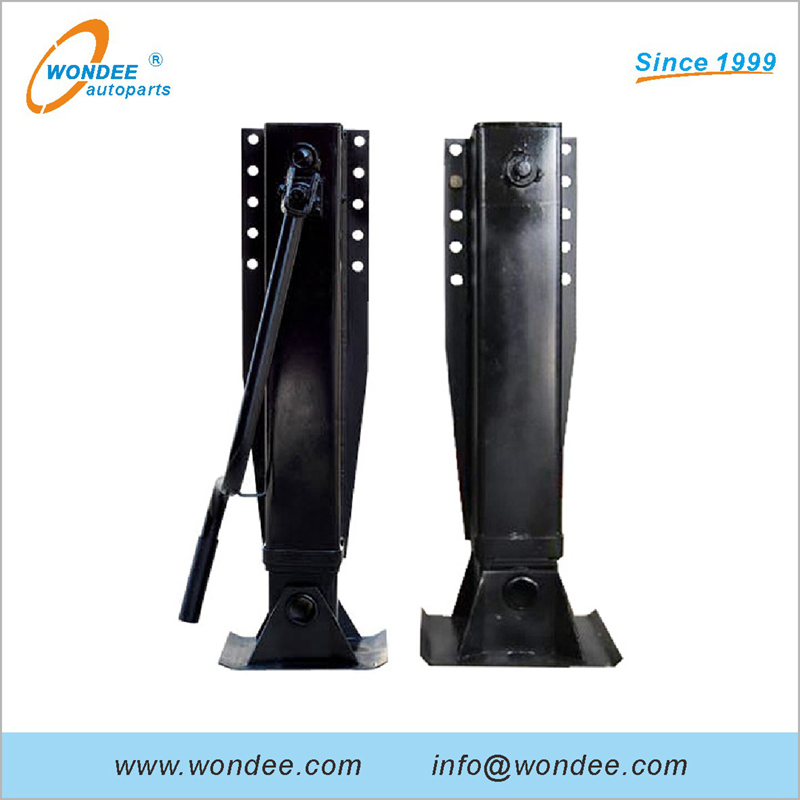

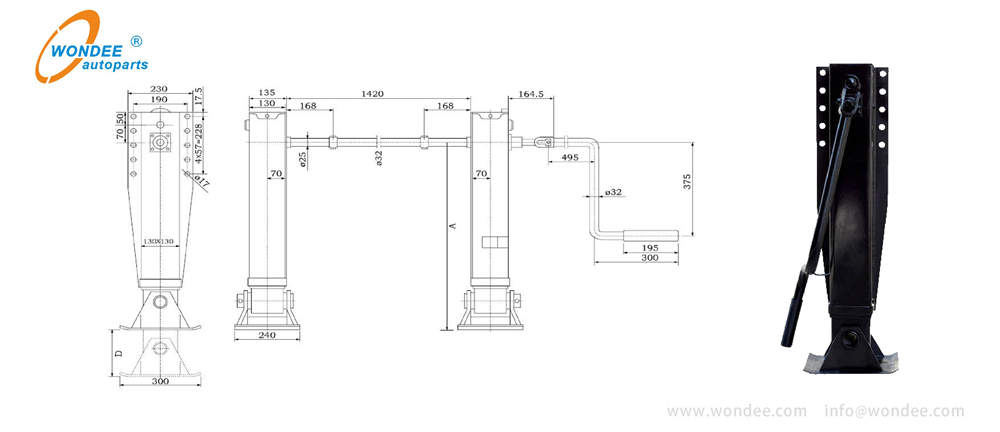

Long mounting plate version with same specifications
Additional information
| Weight | 90 kg |
|---|---|
| Dimensions | 5.4 × 430 × 830 cm |
