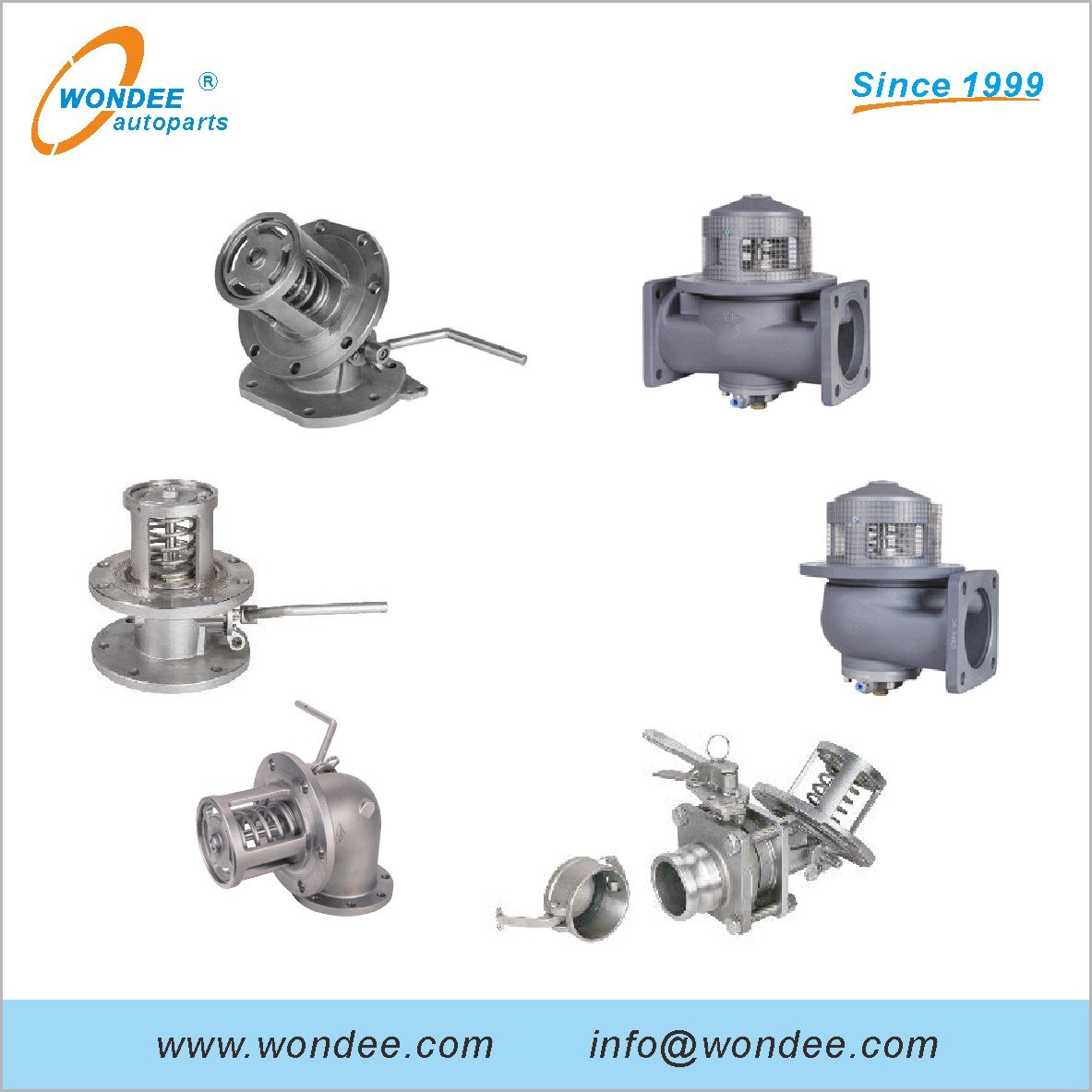

Emergency Cut-off Valve for Fuel Tanker Truck Parts
- Product standards: GB 18564.1-2006
- Material available: cast aluminum alloy, stainless steel
Dispatch within Customized Production Based on Your Requirements : Your order will be manufactured according to your specifications (size, material, usage, etc.) with professional engineering support..- Lead Time: 3–60 Days Depending on Quantity and Specification Warranty: Production and delivery time may vary based on your order volume and customization details. Contact us for an accurate schedule.
Description
Application
Emergency shut-off valve is also called safety shut-off valve or submarine valve, which means that in case of emergency, the valve will quickly close or open to avoid accidents.
The emergency shut-off valve is installed at the bottom of the tank car, and the main seal of the submarine valve is located inside the tank. When the pipeline or valve is accidentally broken, the tank can still be sealed to avoid liquid leakage in the tank and improve the safety and reliability of transportation. Every tanker has a submarine valve? What is the function of such a small component?
1. When the refueling truck is filled with fuel, the oil and gas recovery valve opens, and the rising liquid level pushes the oil and gas upward to return to the tank in the reservoir area through a series of oil and gas recovery systems.
2. The recovery valve allows the recovered gas to enter the oil tank when the tanker is unloading. In systems without oil and gas recovery facilities, air is allowed to enter the oil tank.
3. High sealing ensures the safety of tanker transportation.
4. Reasonable valve body design ensures high efficiency of oil and gas recovery.
Although the emergency cut-off valve is only an inconspicuous small part on the vehicle body, it plays a vital role. It can not only effectively absorb the energy transmitted by the pipeline damaged by the impact of the vehicle, but also ensure the integrity of the sealing mechanism to avoid material leakage. It greatly improves the safety driving guarantee in ensuring the safety of the whole vehicle and avoiding dangerous accidents.
Types 1~6
| Features(Type 1): | |

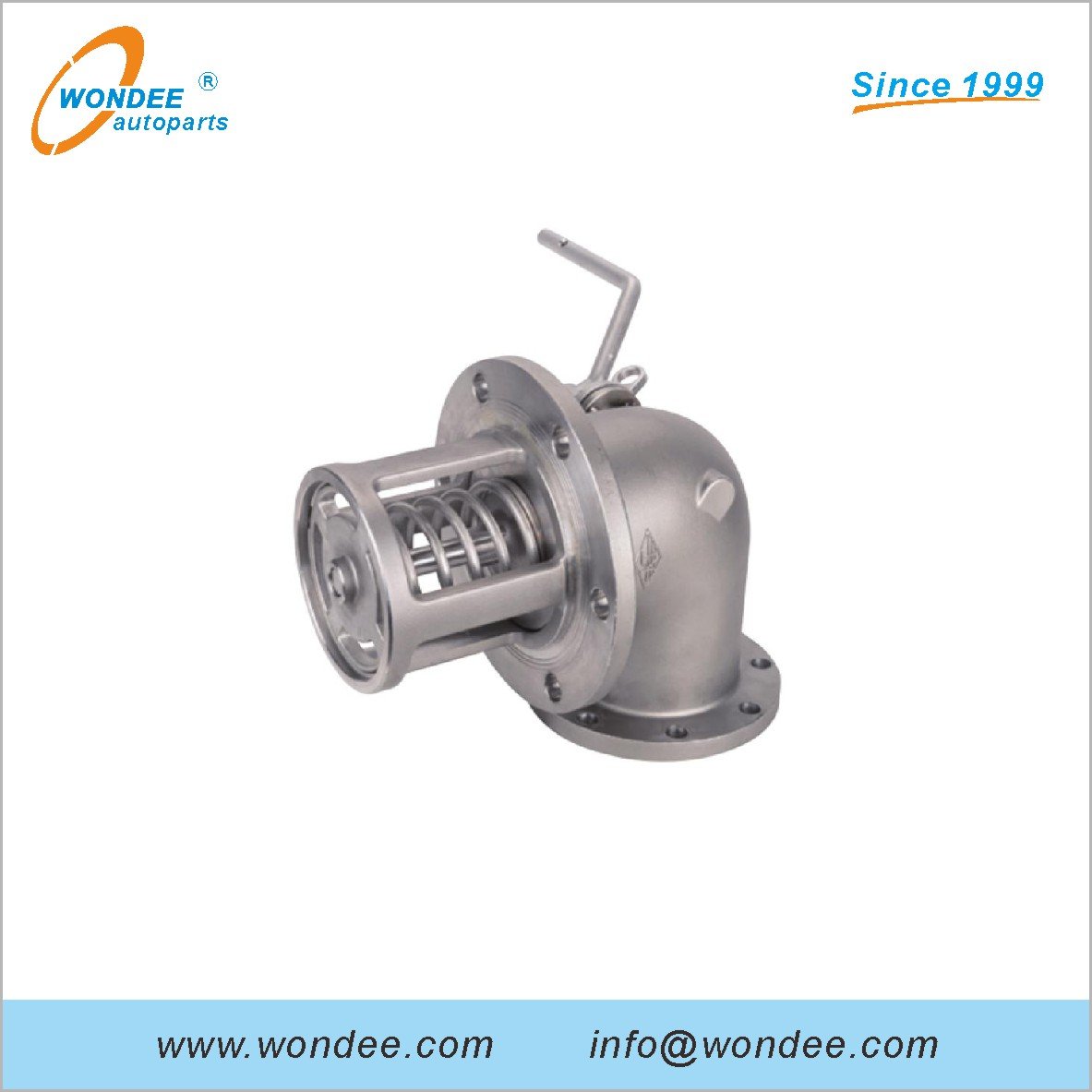

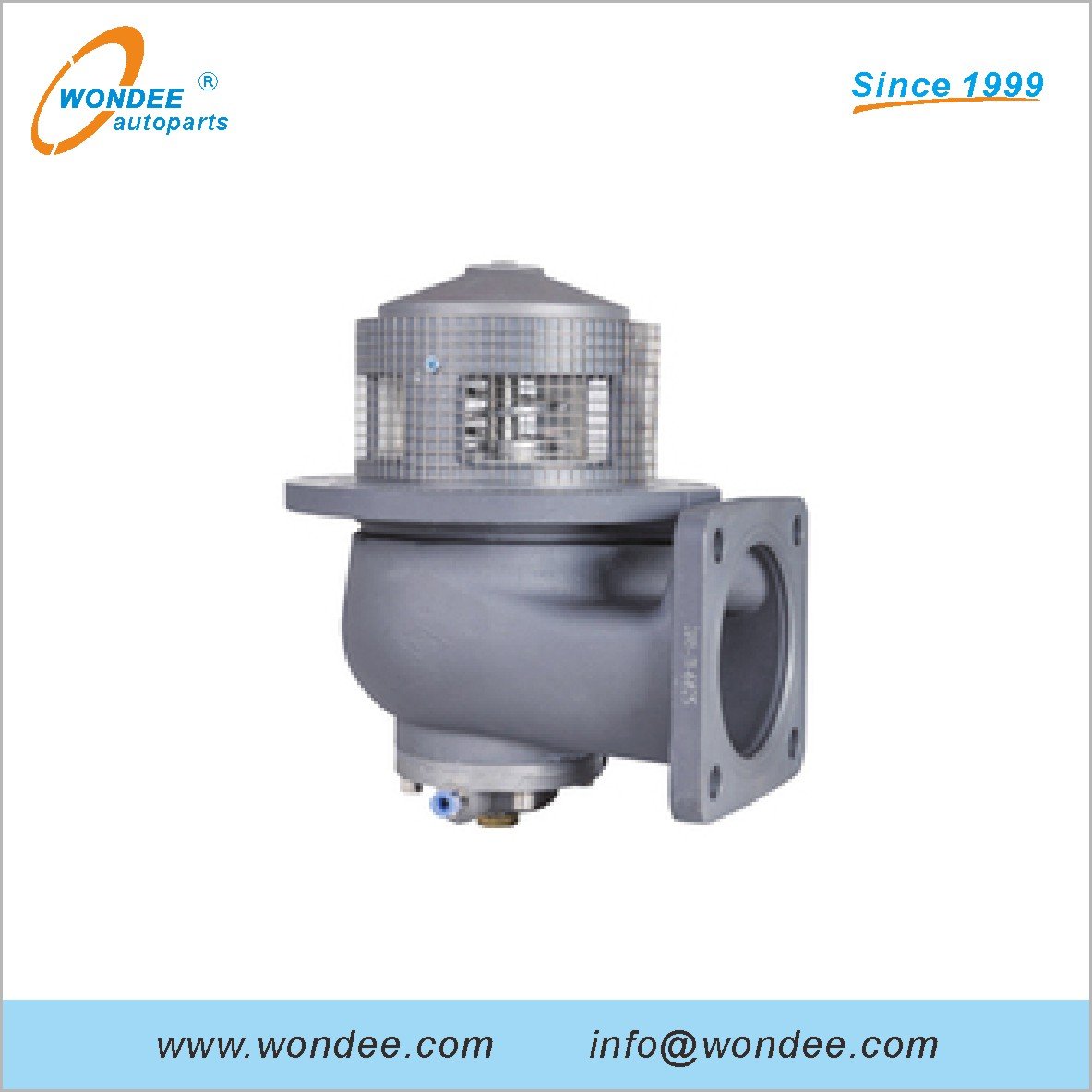

| Structure: | 90° emergency cut-off valve. 90° valve body design. |
| Application: | Installed at the bottom of the tank, suitable for filling and draining of small tank volume. |
| Material: | Cast aluminum alloy |
| Parameters(Selecting Order Item): | |
| Item No. | Description |
| WD02-100 | Internal cylinder opening mode, discharge diameter: Ø100mm |
| Technique Specifications: | |
| Nominal diameter： | DN100（4″） |
| Nominal pressure： | 0.6MPa |
| Installation method： | Flange type |
| Suitable Medium： | Diesel, gasoline |
| Working temperature range： | -20℃ ~ 50℃ |
| Working temperature range under special working conditions： | -40℃ ~ 70℃ |
| Remarks: | The seal need to be replaced every 6 months, and customized in special conditions. |
| Features(Type 2): | |
| Structure: | 90° emergency cut-off valve. 90° valve body design. |
| Application: | Installed at the bottom of the tank, suitable for filling and draining of small tank volume. |
| Material: | Stainless steel |
| Parameters(Selecting Order Item): | |
| Item No. | Description |
| WD02-100PAF2 | Internal cylinder opening mode, discharge diameter: Ø100mm |
| Technique Specifications: | |
| Nominal diameter： | DN100（4″） |
| Nominal pressure： | 1.6MPa |
| Installation method： | Flange type |
| Suitable Medium： | Dangerous chemicals |
| Working temperature range： | -40℃ ~ 200℃ |
| Working temperature range under special working conditions： | -60℃ ~ 250℃ |
| Remarks: | The seal need to be replaced every 6 months, and customized in special conditions. |
| Features(Type 3): | |
| Structure: | 90° emergency cut-off valve. 90° valve body designed, and the outside is covered with polytetrafluoroethylene, with anti-corrosion function. |
| Application: | Installed at the bottom of the tank, suitable for filling and draining of small tank volume. |
| Material: | Stainless steel |
| Parameters(Selecting Order Item): | |
| Item No. | Description |
| WD02-100CAF2 | Internal cylinder opening mode, discharge diameter: Ø100mm |
| Technique Specifications: | |
| Nominal diameter： | DN100（4″） |
| Nominal pressure： | 1.6MPa |
| Installation method： | Flange type |
| Suitable Medium： | Dangerous chemicals |
| Working temperature range： | -40℃ ~ 200℃ |
| Working temperature range under special working conditions： | -60℃ ~ 250℃ |
| Remarks: | The seal need to be replaced every 6 months, and customized in special conditions. |
| Features(Type 4): | |
| Structure: | 90° emergency cut-off valve. 90° valve body design. |
| Application: | Installed at the bottom of the tank, suitable for filling and draining of small tank volume. |
| Material: | Stainless steel |
| Parameters(Selecting Order Item): | |
| Item No. | Description |
| WD02-80SY3 | Internal cylinder opening mode, discharge diameter: Ø80mm（3”） |
| WD02-100SY2 | Internal cylinder opening mode, discharge diameter: Ø100mm（4”） |
| WD02-80PSAY3 | Internal cylinder opening mode, discharge diameter: Ø80mm（3”） |
| WD02-100PSAY2 | Internal cylinder opening mode, discharge diameter: Ø100mm（4”） |
| Technique Specifications: | |
| Nominal pressure： | 1.6MPa |
| Installation method： | Flange type |
| Suitable Medium： | Dangerous chemicals |
| Working temperature range： | -40℃ ~ 200℃ |
| Working temperature range under special working conditions： | -60℃ ~ 250℃ |
| Remarks: | The seal need to be replaced every 6 months, and customized in special conditions. |
| Features(Type 5): | |
| Structure: | 90° emergency cut-off valve. 90° valve body design. |
| Application: | Installed at the bottom of the tank, suitable for filling and draining of small tank volume. |
| Material: | Stainless steel |
| Parameters(Selecting Order Item): | |
| Item No. | Description |
| WD02-80PSAF2 | Internal cylinder opening mode, discharge diameter: Ø80mm（3”） |
| WD02-100PSAF2 | Internal cylinder opening mode, discharge diameter: Ø100mm（4”） |
| Technique Specifications: | |
| Nominal pressure： | 1.6MPa |
| Installation method： | Flange type |
| Suitable Medium： | Dangerous chemicals |
| Working temperature range： | -40℃ ~ 200℃ |
| Working temperature range under special working conditions： | -60℃ ~ 250℃ |
| Remarks: | The seal need to be replaced every 6 months, and customized in special conditions. |
| Features(Type 6): | |

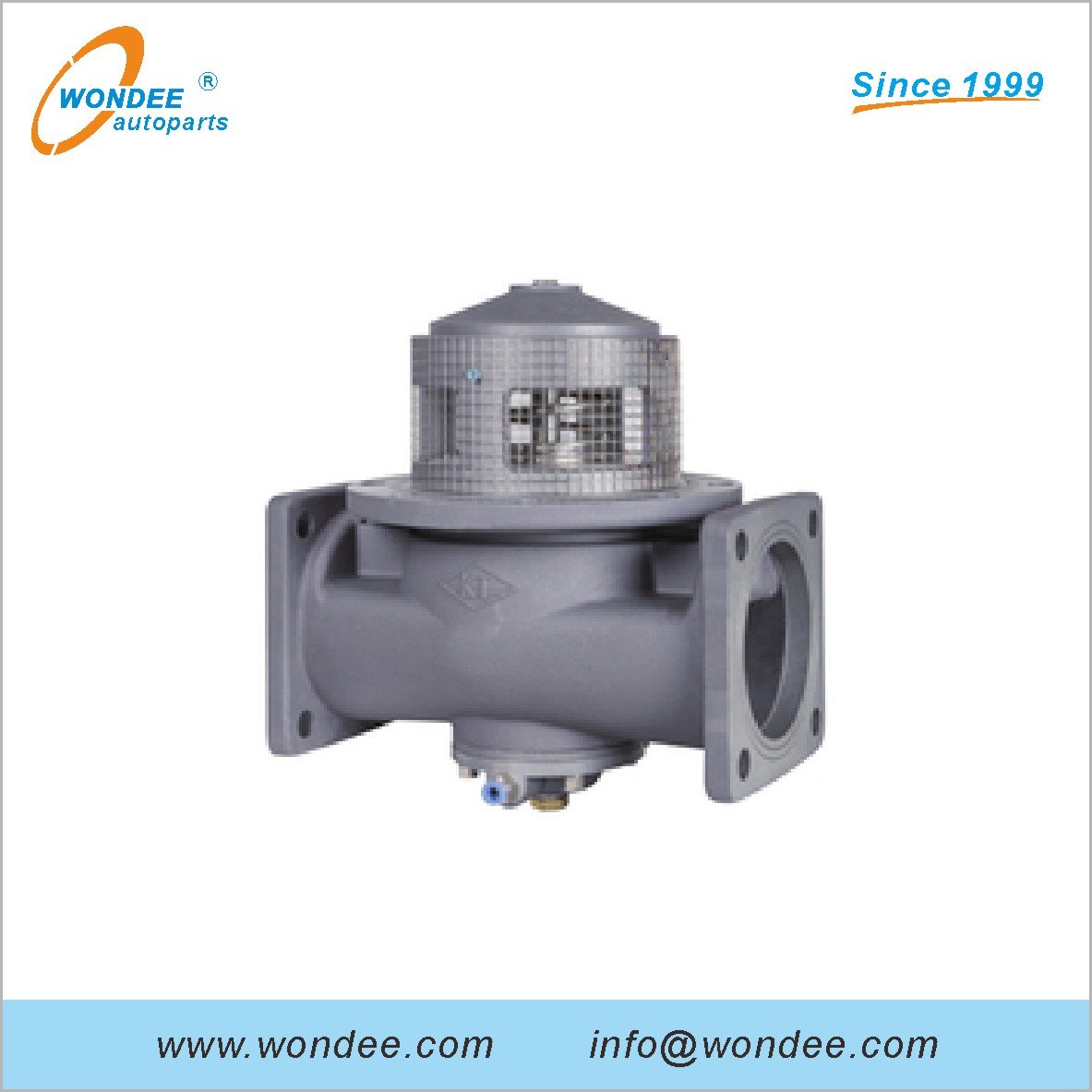

| Structure: | 90° emergency cut-off valve. 90° three-way valve body design. |
| Application: | Installed at the bottom of the tank, suitable for filling and draining of small tank volume. |
| Material: | Aluminum alloy |
| Parameters(Selecting Order Item): | |
| Item No. | Description |
| WD828-100F2 | Internal cylinder opening mode, discharge diameter: Ø100mm（4”） |
| Technique Specifications: | |
| Nominal diameter： | DN100（4″） |
| Nominal pressure： | 0.6MPa |
| Installation method： | Flange type |
| Suitable Medium： | Diesel, gasoline |
| Working temperature range： | -20℃ ~ 50℃ |
| Working temperature range under special working conditions： | -40℃ ~ 70℃ |
| Remarks: | The seal need to be replaced every 6 months, and customized in special conditions. |
Types 7~12
| Features(Type 7): | |

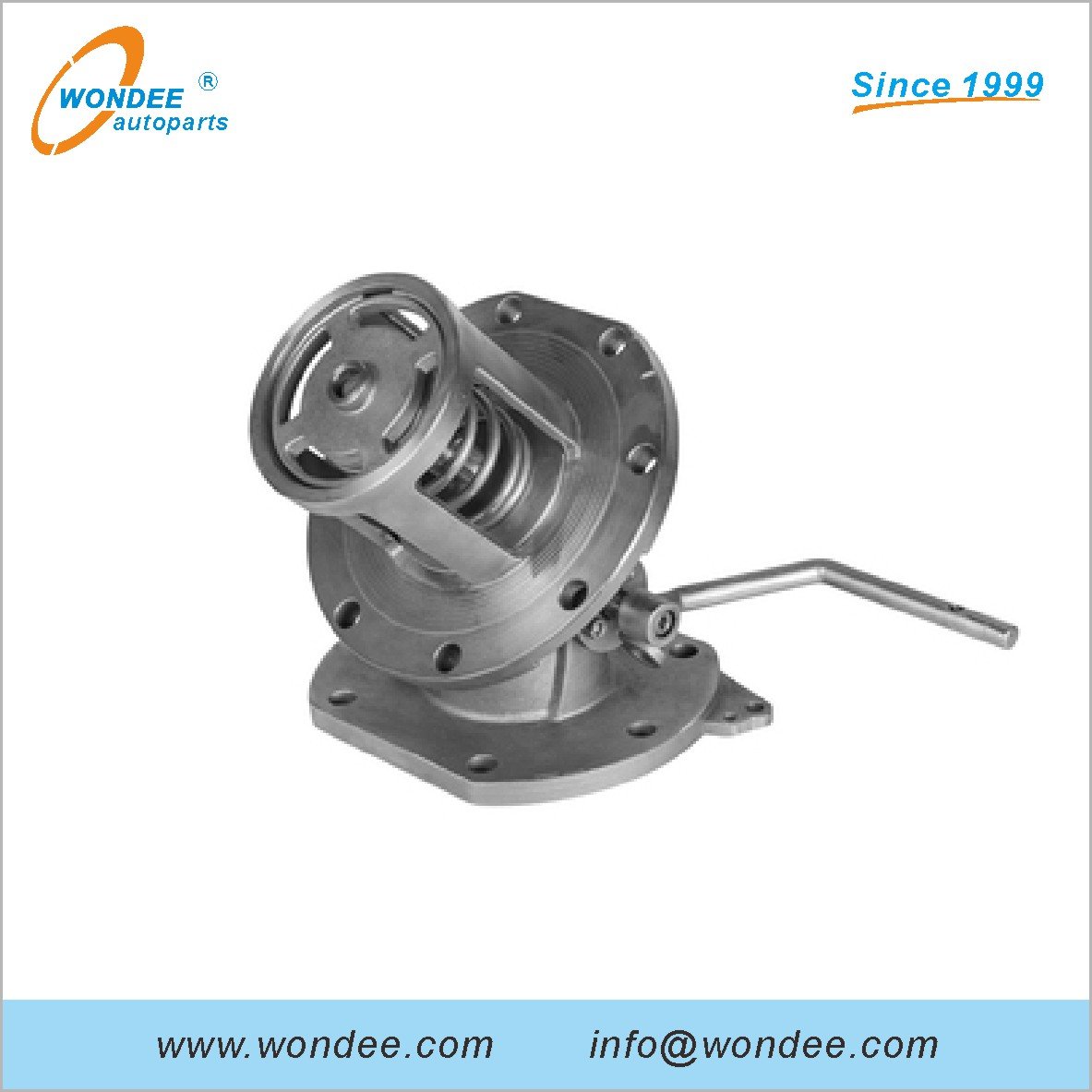

| Structure: | 45° emergency cut-off valve. 45° valve body design. |
| Application: | Installed at the bottom of the tank, suitable for filling and draining of small tank volume. |
| Material: | Stainless steel |
| Parameters(Selecting Order Item): | |
| Item No. | Description |
| WD826-80PSAY1 | Manual opening mode，discharge diameter: Ø80mm |
| WD826-80RSAY1 | Manual opening mode，discharge diameter: Ø80mm |
| Technique Specifications: | |
| Nominal diameter： | DN80（3″） |
| Nominal pressure： | 1.6MPa |
| Installation method： | Flange type |
| Suitable Medium： | Dangerous chemicals |
| Working temperature range： | -40℃ ~ 200℃ |
| Working temperature range under special working conditions： | -60℃ ~ 250℃ |
| Remarks: | The seal need to be replaced every 6 months, and customized in special conditions. |
| Features(Type 8): | |
| Structure: | 45° emergency cut-off valve. 45° valve body design. |
| Application: | Installed at the bottom of the tank, suitable for filling and draining of small tank volume. |
| Material: | Stainless steel |
| Parameters(Selecting Order Item): | |
| Item No. | Description |
| WD826-80PSBY1 | Manual opening mode, discharge diameter: Ø80mm, temperature holding. |
| WD826-80RSBY1 | Manual opening mode, discharge diameter: Ø80mm, temperature holding. |
| Technique Specifications: | |
| Nominal diameter： | DN80（3″） |
| Nominal pressure： | 1.6MPa |
| Installation method： | Flange type |
| Suitable Medium： | Dangerous chemicals |
| Working temperature range： | -40℃ ~ 200℃ |
| Working temperature range under special working conditions： | -60℃ ~ 250℃ |
| Remarks: | The seal need to be replaced every 6 months, and customized in special conditions. |
| Features(Type 9): | |
| Structure: | 45° emergency cut-off valve. 45° valve body design. |
| Application: | Installed at the bottom of the tank, suitable for filling and draining of small tank volume. |
| Material: | Stainless steel |
| Parameters(Selecting Order Item): | |
| Item No. | Description |
| WD826-80PQAY1 | Pneumatic opening mode, discharge diameter: Ø80mm, no temperature holding. |
| WD826-80RQAY1 | Pneumatic opening mode, discharge diameter: Ø80mm, no temperature holding. |
| Technique Specifications: | |
| Nominal diameter： | DN80（3″） |
| Nominal pressure： | 1.6MPa |
| Installation method： | Flange type |
| Suitable Medium： | Dangerous chemicals |
| Working temperature range： | -40℃ ~ 200℃ |
| Working temperature range under special working conditions： | -60℃ ~ 250℃ |
| Remarks: | The seal need to be replaced every 6 months, and customized in special conditions. |
| Features(Type 10): | |
| Structure: | 45° emergency cut-off valve. 45° valve body design. |
| Application: | Installed at the bottom of the tank, suitable for filling and draining of small tank volume. |
| Material: | Stainless steel |
| Parameters(Selecting Order Item): | |
| Item No. | Description |
| WD826-80PQBY1 | Pneumatic opening mode, discharge diameter: Ø80mm, temperature holding. |
| WD826-80RQBY1 | Pneumatic opening mode, discharge diameter: Ø80mm, temperature holding. |
| Technique Specifications: | |
| Nominal diameter： | DN80（3″） |
| Nominal pressure： | 1.6MPa |
| Installation method： | Flange type |
| Suitable Medium： | Dangerous chemicals |
| Working temperature range： | -40℃ ~ 200℃ |
| Working temperature range under special working conditions： | -60℃ ~ 250℃ |
| Remarks: | The seal need to be replaced every 6 months, and customized in special conditions. |
| Features(Type 11): | |
| Structure: | 45° emergency cut-off valve. 45° valve body design. |
| Application: | Installed at the bottom of the tank, suitable for filling and draining of small tank volume. |
| Material: | Stainless steel |
| Parameters(Selecting Order Item): | |
| Item No. | Description |
| WD826-80PSAF1 | Manual opening mode，discharge diameter: Ø80mm, no temperature holding. |
| WD826-80RSAF1 | Manual opening mode，discharge diameter: Ø80mm, no temperature holding. |
| WD826-80PSAF2 | Manual opening mode，discharge diameter: Ø80mm, no temperature holding. |
| WD826-80RSAF2 | Manual opening mode，discharge diameter: Ø80mm, no temperature holding. |
| Technique Specifications: | |
| Nominal diameter： | DN80（3″） |
| Nominal pressure： | 1.6MPa |
| Installation method： | Flange type(120×120，140×140) |
| Suitable Medium： | Dangerous chemicals |
| Working temperature range： | -40℃ ~ 200℃ |
| Working temperature range under special working conditions： | -60℃ ~ 250℃ |
| Remarks: | The seal need to be replaced every 6 months, and customized in special conditions. |
| Features(Type 12): | |
| Structure: | 45° emergency cut-off valve. 45° valve body design. |
| Application: | Installed at the bottom of the tank, suitable for filling and draining of small tank volume. |
| Material: | Stainless steel |
| Parameters(Selecting Order Item): | |
| Item No. | Description |
| WD826-80PSBF1 | Manual opening mode，discharge diameter: Ø80mm, temperature holding. |
| WD826-80RSBF1 | Manual opening mode，discharge diameter: Ø80mm, temperature holding. |
| WD826-80PSBF2 | Manual opening mode，discharge diameter: Ø80mm, temperature holding. |
| WD826-80RSBF2 | Manual opening mode，discharge diameter: Ø80mm, temperature holding. |
| Technique Specifications: | |
| Nominal diameter： | DN80（3″） |
| Nominal pressure： | 1.6MPa |
| Installation method： | Flange type（120×120，140×140） |
| Suitable Medium： | Dangerous chemicals |
| Working temperature range： | -40℃ ~ 200℃ |
| Working temperature range under special working conditions： | -60℃ ~ 250℃ |
| Remarks: | The seal need to be replaced every 6 months, and customized in special conditions. |
Types 13~18
| Features(Type 13): | |
| Structure: | 45° emergency cut-off valve. 45° valve body design. |
| Application: | Installed at the bottom of the tank, suitable for filling and draining of small tank volume. |
| Material: | Stainless steel |
| Parameters(Selecting Order Item): | |
| Item No. | Description |
| WD826-80PQAF2 | Pneumatic opening mode, discharge diameter: Ø80mm, no temperature holding. |
| WD826-80RQAF2 | Pneumatic opening mode, discharge diameter: Ø80mm, no temperature holding. |
| Technique Specifications: | |
| Nominal diameter： | DN80（3″） |
| Nominal pressure： | 1.6MPa |
| Installation method： | Flange type（140×140） |
| Suitable Medium： | Dangerous chemicals |
| Working temperature range： | -40℃ ~ 200℃ |
| Working temperature range under special working conditions： | -60℃ ~ 250℃ |
| Remarks: | The seal need to be replaced every 6 months, and customized in special conditions. |
| Features(Type 14): | |
| Structure: | 45° emergency cut-off valve. 45° valve body design. |
| Application: | Installed at the bottom of the tank, suitable for filling and draining of small tank volume. |
| Material: | Stainless steel |
| Parameters(Selecting Order Item): | |
| Item No. | Description |
| WD826-80PQBF2 | Pneumatic opening mode, discharge diameter: Ø80mm, temperature holding. |
| WD826-80PQBF2 | Pneumatic opening mode, discharge diameter: Ø80mm, temperature holding. |
| Technique Specifications: | |
| Nominal diameter： | DN80（3″） |
| Nominal pressure： | 1.6MPa |
| Installation method： | Flange type（140×140） |
| Suitable Medium： | Dangerous chemicals |
| Working temperature range： | -40℃ ~ 200℃ |
| Working temperature range under special working conditions： | -60℃ ~ 250℃ |
| Remarks: | The seal need to be replaced every 6 months, and customized in special conditions. |
| Features(Type 15): | |

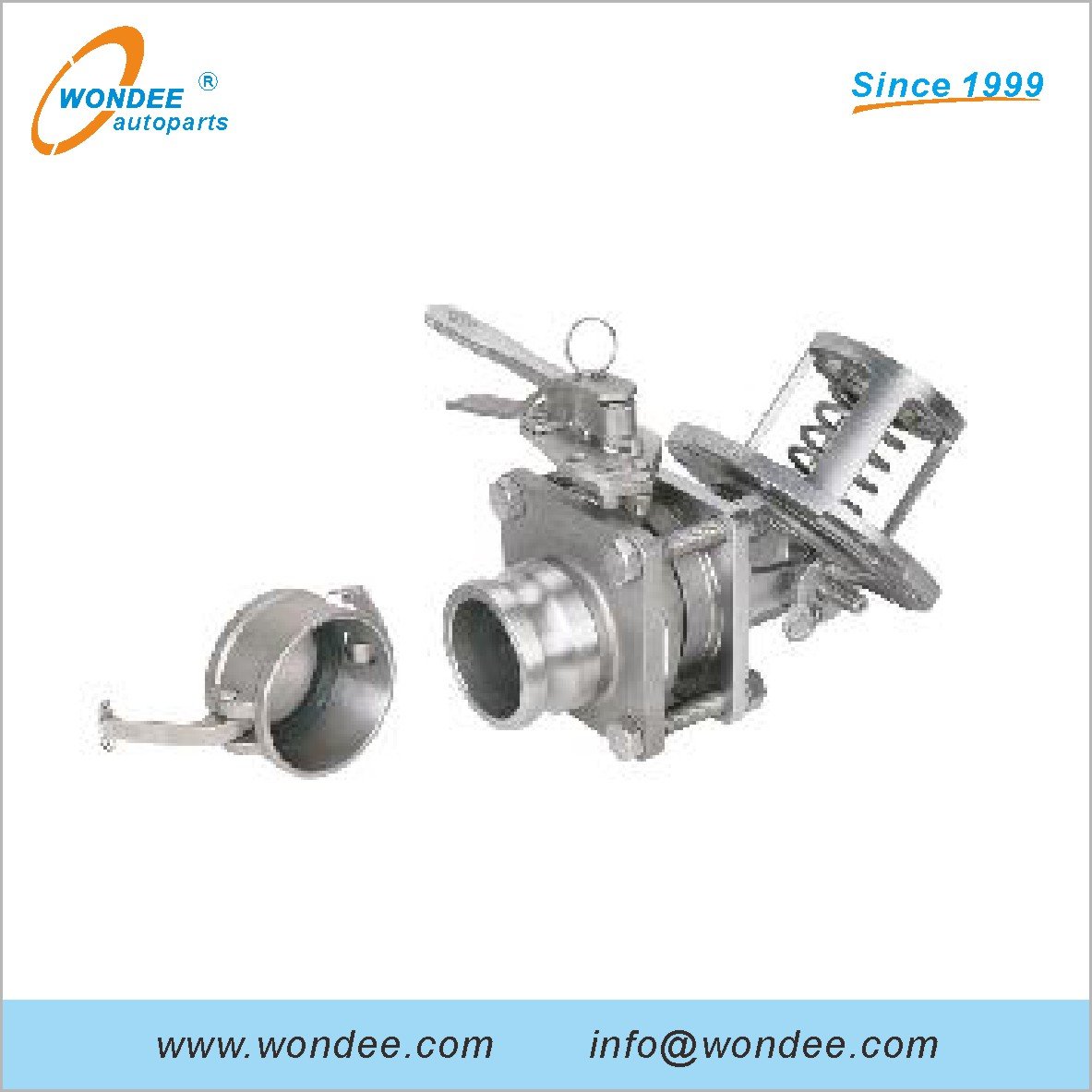

| Structure: | 45° emergency cut-off valve. 45° valve body designed, and the outside is covered with polytetrafluoroethylene, with anti-corrosion function. |
| Application: | Installed at the bottom of the tank, suitable for filling and draining of small tank volume. |
| Material: | Stainless steel |
| Parameters(Selecting Order Item): | |
| Item No. | Description |
| WD826-80CSAF2 | Manual opening mode, discharge diameter: Ø80mm, no temperature holding. |
| WD826-80CQAF2 | Pneumatic opening mode, discharge diameter: Ø80mm, no temperature holding. |
| Technique Specifications: | |
| Nominal diameter： | DN80（3″） |
| Nominal pressure： | 1.6MPa |
| Installation method： | Flange type |
| Suitable Medium： | Dangerous chemicals |
| Working temperature range： | -40℃ ~ 200℃ |
| Working temperature range under special working conditions： | -60℃ ~ 250℃ |
| Remarks: | The seal need to be replaced every 6 months, and customized in special conditions. |
| Features(Type 16): | |
| Structure: | 45° combined type male emergency cut-off valve. 45° valve body design, |
| Application: | Can be used together with the butterfly valve to get a double seal protection. |
| Material: | Stainless steel |
| Parameters(Selecting Order Item): | |
| Item No. | Description |
| WD826-80PSAF2L1 | Manual opening mode，discharge diameter: Ø80mm, no temperature holding. |
| WD826-80RSAF2L1 | Manual opening mode，discharge diameter: Ø80mm, no temperature holding. |
| WD826-80PSBF2L1 | Manual opening mode，discharge diameter: Ø80mm, temperature holding. |
| WD826-80RSBF2L1 | Manual opening mode，discharge diameter: Ø80mm, temperature holding. |
| Technique Specifications: | |
| Nominal diameter： | DN80（3″） |
| Nominal pressure： | 1.6MPa |
| Installation method： | Flange type |
| Suitable Medium： | Dangerous chemicals |
| Working temperature range： | -40℃ ~ 200℃ |
| Working temperature range under special working conditions： | -60℃ ~ 250℃ |
| Remarks: | The seal need to be replaced every 6 months, and customized in special conditions. |
| Features(Type 17): | |
| Structure: | 45° integral type male emergency cut-off valve. 45° valve body design, |
| Application: | Can be used together with the butterfly valve to get a double seal protection. |
| Material: | Stainless steel |
| Parameters(Selecting Order Item): | |
| Item No. | Description |
| WD826-80PSAF2M1 | Manual opening mode，discharge diameter: Ø80mm, no temperature holding. |
| WD826-80RSAF2M1 | Manual opening mode，discharge diameter: Ø80mm, no temperature holding. |
| WD826-80PSBF2M1 | Manual opening mode，discharge diameter: Ø80mm, temperature holding. |
| WD826-80RSBF2M1 | Manual opening mode，discharge diameter: Ø80mm, temperature holding. |
| Technique Specifications: | |
| Nominal diameter： | DN80（3″） |
| Nominal pressure： | 1.6MPa |
| Installation method： | Flange type |
| Suitable Medium： | Dangerous chemicals |
| Working temperature range： | -40℃ ~ 200℃ |
| Working temperature range under special working conditions： | -60℃ ~ 250℃ |
| Remarks: | The seal need to be replaced every 6 months, and customized in special conditions. |
| Features(Type 18): | |
| Structure: | 45° integral type male emergency cut-off valve. 45° valve body design, |
| Application: | Can be used together with the butterfly valve to get a double seal protection. |
| Material: | Stainless steel |
| Parameters(Selecting Order Item): | |
| Item No. | Description |
| WD826-80PSAF1L | Manual opening mode，no temperature holding. |
| WD826-80RSAF1L | Manual opening mode，no temperature holding. |
| WD826-80PSBF1L | Manual opening mode，temperature holding. |
| WD826-80RSBF1L | Manual opening mode，temperature holding. |
| Technique Specifications: | |
| Nominal diameter： | DN80（3″） |
| Nominal pressure： | 1.6MPa |
| Installation method： | Flange type |
| Suitable Medium： | Dangerous chemicals |
| Working temperature range： | -40℃ ~ 200℃ |
| Working temperature range under special working conditions： | -60℃ ~ 250℃ |
| Remarks: | The seal need to be replaced every 6 months, and customized in special conditions. |
Types 19~23
| Features(Type 19): | |
| Structure: | 180° emergency cut-off valve. 180° valve body design. |
| Application: | Installed at the bottom of the tank, suitable for filling and draining of small tank volume. |
| Material: | Stainless steel |
| Parameters(Selecting Order Item): | |
| Item No. | Description |
| WD801-80PSAY1 | Manual opening mode，discharge diameter: Ø80mm（3″）, no temperature holding. |
| WD801-80RSAY1 | Manual opening mode，discharge diameter: Ø80mm（3″）, no temperature holding. |
| WD801-100PSAY5 | Manual opening mode，discharge diameter: Ø100mm（4″）, no temperature holding. |
| WD801-100RSAY5 | Manual opening mode，discharge diameter: Ø100mm（4″）, no temperature holding. |
| Technique Specifications: | |
| Nominal pressure： | 1.6MPa |
| Installation method： | Flange type |
| Suitable Medium： | Dangerous chemicals |
| Working temperature range： | -40℃ ~ 200℃ |
| Working temperature range under special working conditions： | -60℃ ~ 250℃ |
| Remarks: | The seal need to be replaced every 6 months, and customized in special conditions. |
| Features(Type 20): | |
| Structure: | 180° emergency cut-off valve. 180° valve body design. |
| Application: | Installed at the bottom of the tank, suitable for filling and draining of small tank volume. |
| Material: | Stainless steel |
| Parameters(Selecting Order Item): | |
| Item No. | Description |
| WD801-80PSBY1 | Manual opening mode，discharge diameter: Ø80mm（3″）, temperature holding. |
| WD801-80RSBY1 | Manual opening mode，discharge diameter: Ø80mm（3″）, temperature holding. |
| WD801-100PSBY5 | Manual opening mode，discharge diameter: Ø100mm（4″）, temperature holding. |
| WD801-100RSBY5 | Manual opening mode，discharge diameter: Ø100mm（4″）, temperature holding. |
| Technique Specifications: | |
| Nominal diameter： | DN80（3″） |
| Nominal pressure： | 1.6MPa |
| Installation method： | Flange type |
| Suitable Medium： | Dangerous chemicals |
| Working temperature range： | -40℃ ~ 200℃ |
| Working temperature range under special working conditions： | -60℃ ~ 250℃ |
| Remarks: | The seal need to be replaced every 6 months, and customized in special conditions. |
| Features(Type 21): | |
| Structure: | 180° emergency cut-off valve. 180° valve body design. |
| Application: | Installed at the bottom of the tank, suitable for filling and draining of small tank volume. |
| Material: | Stainless steel |
| Parameters(Selecting Order Item): | |
| Item No. | Description |
| WD801-80PQAY1 | Pneumatic opening mode, discharge diameter: Ø80mm（3″）, no temperature holding. |
| WD801-80RQAY1 | Pneumatic opening mode, discharge diameter: Ø80mm（3″）, no temperature holding. |
| WD801-100PQAY5 | Pneumatic opening mode, discharge diameter: Ø100mm（4″）, no temperature holding. |
| WD801-100PQAY5 | Pneumatic opening mode, discharge diameter: Ø100mm（4″）, no temperature holding. |
| Technique Specifications: | |
| Nominal pressure： | 1.6MPa |
| Installation method： | Flange type |
| Suitable Medium： | Dangerous chemicals |
| Working temperature range： | -40℃ ~ 200℃ |
| Working temperature range under special working conditions： | -60℃ ~ 250℃ |
| Remarks: | The seal need to be replaced every 6 months, and customized in special conditions. |
| Features(Type 22): | |
| Structure: | 180° emergency cut-off valve. 180° valve body design. |
| Application: | Installed at the bottom of the tank, suitable for filling and draining of small tank volume. |
| Material: | Stainless steel |
| Parameters(Selecting Order Item): | |
| Item No. | Description |
| WD801-80PQBY1 | Pneumatic opening mode, discharge diameter: Ø80mm（3″）, temperature holding. |
| WD801-80RQBY1 | Pneumatic opening mode, discharge diameter: Ø80mm（3″）, temperature holding. |
| WD801-100PQBY5 | Pneumatic opening mode, discharge diameter: Ø100mm（4″）, temperature holding. |
| WD801-100RQBY5 | Pneumatic opening mode, discharge diameter: Ø100mm（4″）, temperature holding. |
| Technique Specifications: | |
| Nominal pressure： | 1.6MPa |
| Installation method： | Flange type |
| Suitable Medium： | Dangerous chemicals |
| Working temperature range： | -40℃ ~ 200℃ |
| Working temperature range under special working conditions： | -60℃ ~ 250℃ |
| Remarks: | |
| Features(Type 23): | |
| Structure: | 180° emergency cut-off valve. 180° valve body design. |
| Application: | Installed at the bottom of the tank, the large working nominal diameter, suitable for fast loading and unloading, saving time. |
| Material: | Aluminium alloy |
| Parameters(Selecting Order Item): | |
| Item No. | Description |
| WD801-150QY4 | Pneumatic opening mode, discharge diameter: Ø150mm（6″）, no temperature holding. |
| Technique Specifications: | |
| Nominal pressure： | 0.6MPa |
| Installation method： | Flange type |
| Suitable Medium： | Diesel, gasoline |
| Working temperature range： | -20℃ ~ 50℃ |
| Working temperature range under special working conditions： | -40℃ ~ 70℃ |
| Remarks: | The seal need to be replaced every 6 months, and customized in special conditions. |
Reviews
There are no reviews yet.
