Diameter 300 ~ 1100 ~ 1300 mm Ball Bearing Turntables and Slewing Rings for Semi Trailers
- 1st China’s company to R&D for overseas market in 1999
- 20+ years production experience (since 1999)
- Implementing IATF16949-2016
- Implementing ISO9001-2015
- Radial clearance: ≦ 0.65 mm (European Standard 0.70 mm)
- Axial clearance: ≦ 0.90 mm (European Standard 1.00 mm)
- Technical standards: JT/T651-2006 & LY/T1292-1998
- Warranty: 24 months since shipping date
- Sales volume (units): 20,000+ per year
- Customer satisfaction: 100%
Dispatch within Customized Production Based on Your Requirements : Your order will be manufactured according to your specifications (size, material, usage, etc.) with professional engineering support..- Lead Time: 3–60 Days Depending on Quantity and Specification Warranty: Production and delivery time may vary based on your order volume and customization details. Contact us for an accurate schedule.
Description

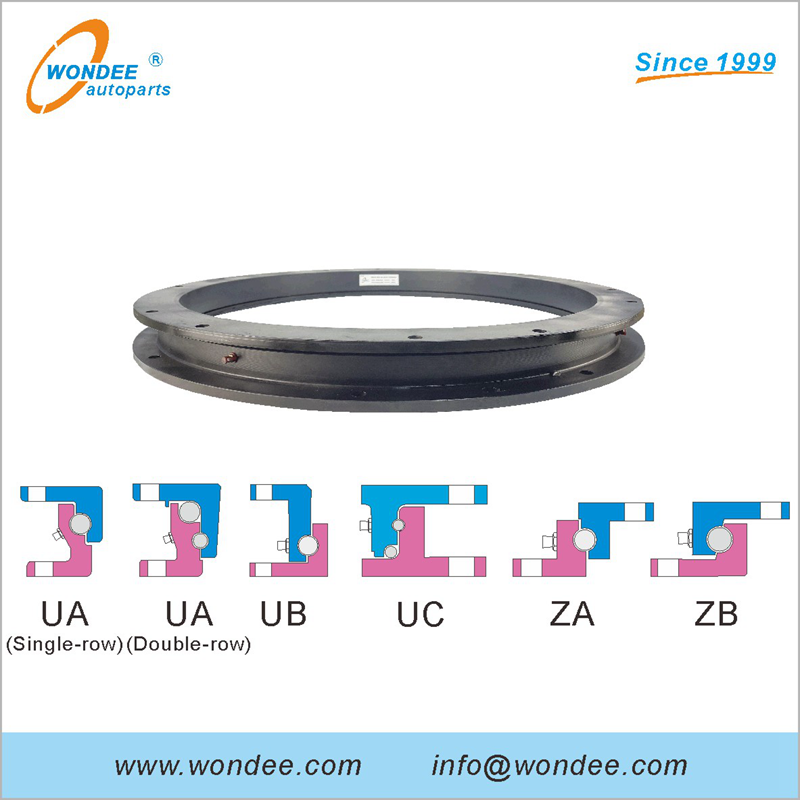

WONDEE Turntable Series
WONDEE provides a complete range of turntables for semi trailers and industrial applications. Our series include UA, UB, UC, U, ZA, and ZB, covering light to heavy-duty usage.

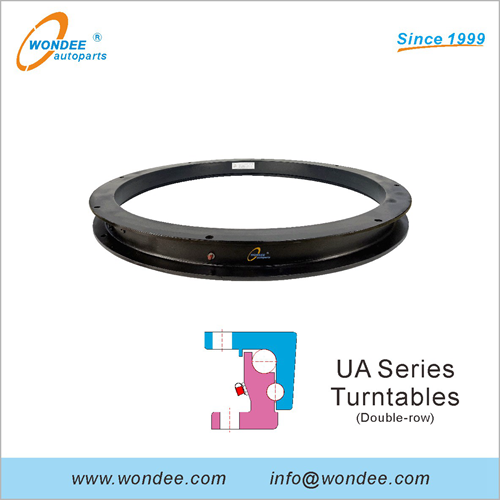

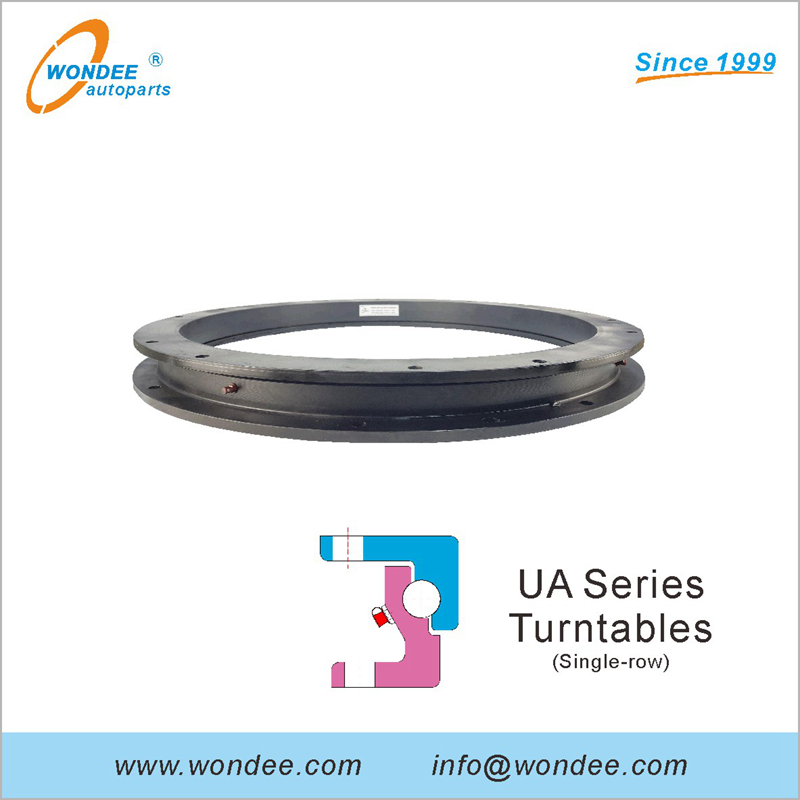

UA Series
The UA series offers strong and durable turntables for agricultural trailers and light industrial equipment.
| Model | Diameter (mm) | Load Capacity (kg) | Application |
|---|---|---|---|
| UA300 | 300 | 500 | Agricultural Trailers |
| UA350 | 350 | 600 | Light Duty Trailers |
| UA400 | 400 | 800 | Medium Machinery |
| UA450 | 450 | 1000 | Transport Equipment |
| UA500 | 500 | 1200 | Industrial Trailers |

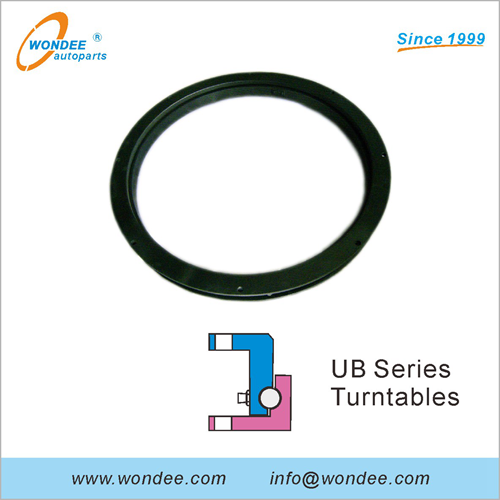

UB Series
The UB series is designed for heavy-duty operations with higher load capacity.
| Model | Diameter (mm) | Load Capacity (kg) | Application |
|---|---|---|---|
| UB500 | 500 | 1500 | Heavy Trailers |
| UB550 | 550 | 2000 | Construction Equipment |
| UB600 | 600 | 2500 | Industrial Machines |
| UB650 | 650 | 3000 | Mining Equipment |
| UB700 | 700 | 3500 | Heavy Load Transport |
UC Series
The UC series features compact designs, perfect for smaller machinery and light equipment.
| Model | Diameter (mm) | Load Capacity (kg) | Application |
|---|---|---|---|
| UC200 | 200 | 300 | Light Machinery |
| UC250 | 250 | 400 | Small Equipment |
| UC300 | 300 | 500 | Compact Trailers |
| UC350 | 350 | 600 | General Machinery |
U Series
The U series is a standard product line for general-purpose usage in transportation and machinery.
| Model | Diameter (mm) | Load Capacity (kg) | Application |
|---|---|---|---|
| U300 | 300 | 500 | General Trailers |
| U350 | 350 | 700 | Industrial Transport |
| U400 | 400 | 900 | Construction Use |
| U450 | 450 | 1100 | Medium Duty Vehicles |

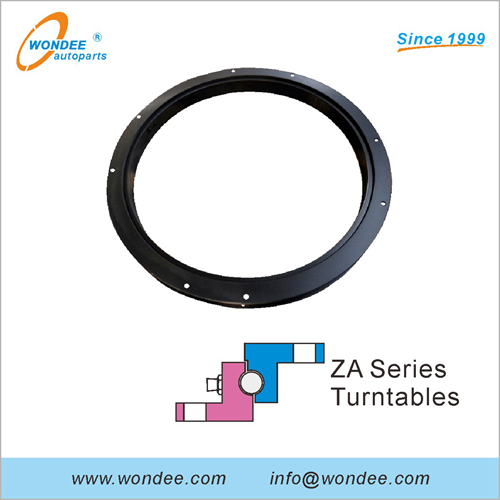

ZA Series
The ZA series provides high-precision turntables for sensitive and demanding equipment.
| Model | Diameter (mm) | Load Capacity (kg) | Application |
|---|---|---|---|
| ZA150 | 150 | 200 | Precision Equipment |
| ZA200 | 200 | 300 | Testing Machines |
| ZA250 | 250 | 400 | Laboratory Use |
| ZA300 | 300 | 500 | Control Systems |

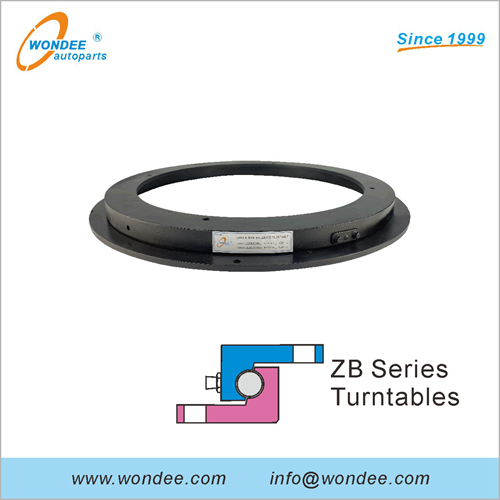

ZB Series
The ZB series is built for heavy-duty industrial tasks with maximum durability.
| Model | Diameter (mm) | Load Capacity (kg) | Application |
|---|---|---|---|
| ZB400 | 400 | 1000 | Industrial Transport |
| ZB450 | 450 | 1200 | Heavy Duty Machinery |
| ZB500 | 500 | 1500 | Construction Trailers |
| ZB600 | 600 | 2000 | Mining Equipment |
WONDEE turntables are engineered for durability, precision, and reliability. We supply a full range of models to support trailers, trucks, and industrial machinery worldwide.
Production
Factory and workshops of WONDEE Autoparts turntables:
(Turntable factory, Machining center, Casting workshop, Assembly workshop)
Factory Facts of WONDEE Autoparts Turntables
| Land area (square meters) | 25,000+ |
| Number of equipment (sets) | 50+ |
| Employees | 70+ |
| Engineers | 6 |
QC Equipment of WONDEE Autoparts Turntables
(Metallographic Analysis, Radial clearance measurement, Sizes measurement, Flatness & axial clearance checking, Pressure test, Tensile test)
Production Process of WONDEE Turntables
1. Mould Making → 2. Sandbox Making → 3. Steel Blank Casting → 4. Machining →
5. Hole Drilling → 6. Hole Threading → 7. Assembling → 8. Grease Filling →
9. Finished Product QC → 10. Painting → 11. Packing → 12. Warehousing
Packing
Warehousing & logistics of WONDEE Autoparts turntables:
(Casting turntable finished production, Turntable labeling, Turntable packing, Turntable warehousing, Turntable container loading)
Other Semi Trailer Components
Besides trailer turntables, WONDEE Autoparts also supplies different semi trailer components as shown below:
