13 Ton Oil Lubrication Semi Trailer Axle for South American Market
- 20+ years of experiences (since 1999)
- Implementing IATF 16949-2016
- Implementing ISO 9001-2015
- Quality testing by an independent laboratory
- Warranty: 18 months since shipping date
- Fatigue life: 1,700,000 cycles
- Sales volume (units) : 100,000+
- Bearing position machining precision (Dia.): 0~0.025mm
- Brake shoe: cylindrical grinding
- Both ends of the beam are processed at the same time
Dispatch within Customized Production Based on Your Requirements : Your order will be manufactured according to your specifications (size, material, usage, etc.) with professional engineering support..- Lead Time: 3–60 Days Depending on Quantity and Specification Warranty: Production and delivery time may vary based on your order volume and customization details. Contact us for an accurate schedule.
Description
Applications

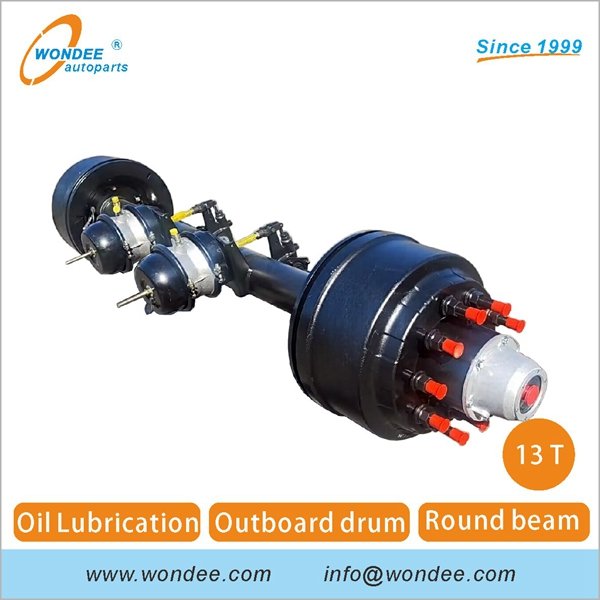

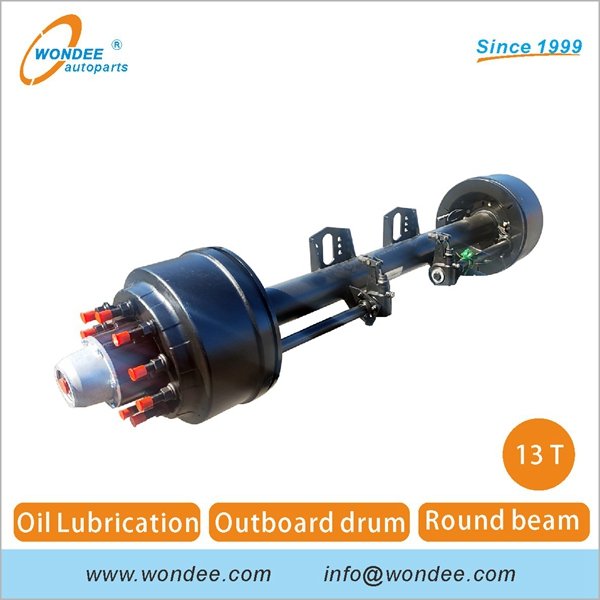

The 13 Ton Oil Lubrication Type Semi Trailer Axle supports full trailer load and transmits external forces. It ensures smooth trailer operation.

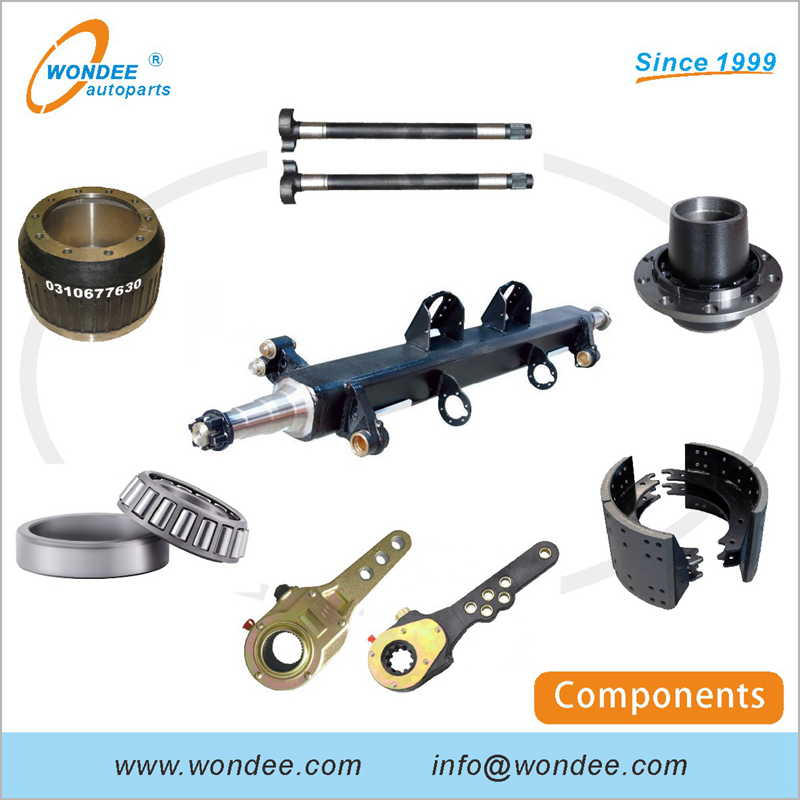

It includes a beam assembly, brake assembly, and wheel hub assembly.
This axle suits skeletal trailers, lowbed trailers, flatbed trailers, dump trailers, car transport trailers, oil tank trailers, van trailers, full trailers, logging transport trailers, and agricultural vehicles.
Axle classifications: German series, American series, spoke series, disc-brake series, low bed series, agricultural series, Brazilian trailer axles, Henred Fruedauf, and York trailer axles.
Features
| Feature | Specification |
|---|---|
| QC Management System | Implementing IATF 16949:2016 |
| Services Quality Management | Implementing ISO 9001:2015 |
| Product Technical Standard | Implementing JT/T 475-2020 |
| Fatigue Life | 1,700,000 cycles |
| Beam Material | 20Mn2 seamless steel tube from China’s top 3 steel mills |
| Axle Beam | Spinning forming, intermediate frequency quenching, tempering for better load capacity and service life |
| Beam Machining | Double-head CNC lathe, medium frequency quenching at bearing mount, fine grinding, special six-hole boring for brake base plate |
| One-piece Beam | High-quality low alloy steel, double-head extrusion, high load, long service life |
| Welding Beams (optional) | Forged spindle heads, submerged arc welding, heat treatment, remarkable performance |
| Bearing Mounting Precision | 0~0.025mm |
| Bearings | High-load, high-speed, wear-resistant brand bearings |
| Brake Shoe | High-grade steel, pressing forming, high-frequency quenching, CNC welding, electrophoretic paint, cylindrical grinding |
| Brake Linings | Non-asbestos, environmentally friendly, long wear life |
| Brake Lining Life | 100,000 km or 1 year |
| Grease | Special high-efficiency grease for extended bearing life |
| Tire Bolts | Alloy steel, high strength, resistant to bending and breaking |
| Sales Volume | 100,000+ units |
| Warranty | 18 months from shipping date |
| Clients (Overseas) | 100+ |
| Overseas Market | 30+ countries (Australia, Poland, Russia, Brazil, Mexico, Thailand, Malaysia, Singapore, Vietnam, Philippines, Indonesia, Bolivia, Argentina, Chile, Peru, Guatemala, Panama, Egypt, South Africa, Nigeria, Tanzania) |
| Certificates | COC, PVOC, CIQ, SONCAP, BV, C/O, FORM E |
